Rangefinder Module UE019A

Description

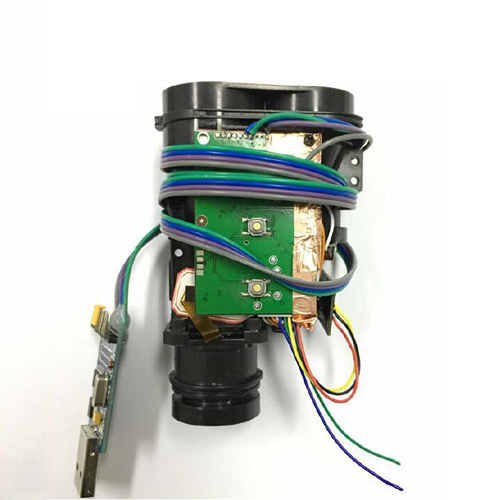

Pulse module consists of several basic components: eyepiece (can be removed), objective lens, and laser receiving lens, it features continuous measurement function(SCAN function), aiming function, 6x optical magnification. UI1919M laser rangefinder module can measure 5~1000M with +/-1m accuracy. There is no requirement for the reflectivity of the close target, and an at least 60% reflectivity of the far away target. Generally speaking, the item can achieve the functions and meet the requirements for golf and hunting purpose.

About Module

• Range: 5-1000m
• High Measurement Frequency to 10HZ
• Long Service Life: 24 hours measurement available for several years
• Strong anti-interference ability, can be used outdoor
• The module can be used for 2nd development for various applications, such as vehicle anti-collision system, sniping, crane hoisting, conveying installations, etc.

Features:

• Range: 5-1000m
• Accuracy: ±1M
• Response Time: 0.6-1.8s
• Wavelength: 905nm
• Wave Beam: 1.6mrad
• Effective Size: 16mm
• Input voltage： 2.4-3.6V
• Power Supply: External DC Power Supply
• Power Consumption: <500mV
• Output Interface: UART
• Working Temperature: -30～+60 ℃
• Waterproof: IP67
• Dimensions: 60 x 50 x 30mm
• Weight: 100g
